  		 Plastic with St. Steel insert
Knurled nuts
GN 420

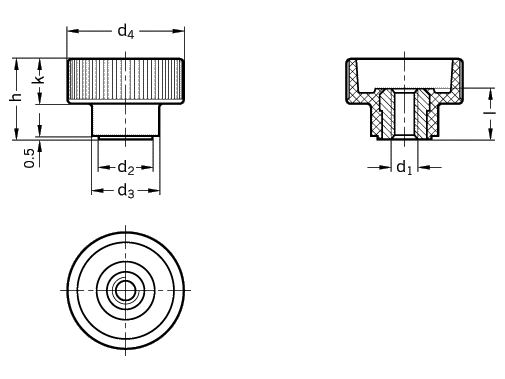

d1 d2 d3 d4 h k l

M 5 9 12 19 14 8 9
M 6 11 14 24 16,5 9,5 10,5
M 8 13 16 30 19,5 11 11,5
Specification Information How to order
Plastic
Technopolymer (Polyamide)

black, shiny

Insert
Stainless Steel (NI)
German Standard
No. 1.4305

St. Steel - properties

 Knurled nuts DIN 6303
(Stainless Steel)		 Knurled nut
GN 420-M8-NI

Code No. 420
d1 M8
St. Steel NI
