  		 Plastic with St. Steel male thread
Knurled thumb screws
GN 421

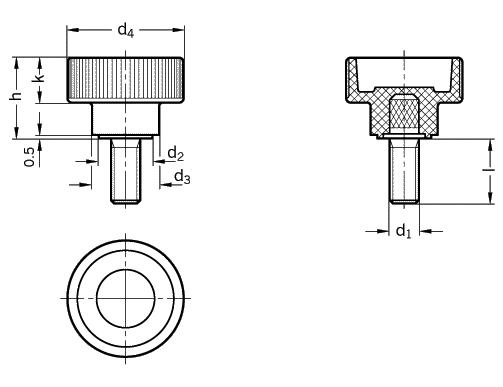

d1 Length l         d2 d3 d4 h k

M 5 10 15 20 25   9 12 19 14 8
M 6 10 16 20 25 30 11 14 24 16,5 9,5
M 8 20 25 30 40   13 16 30 19,5 11

M 10 20 25 30 45 55 15 18 36 22,5 12,5
Specification   How to order
Plastic
Technopolymer (Polyamide)

black, shiny

Screw
Stainless Steel (NI)
German Standard
No. 1.4305 (1.4567)

St. Steel - properties

 Knurled thumb screw
GN 421-M6-20-NI

Code No. 421
d1 M6
Length l 20
St. Steel NI
