Cabinet "U" handles
GN 426

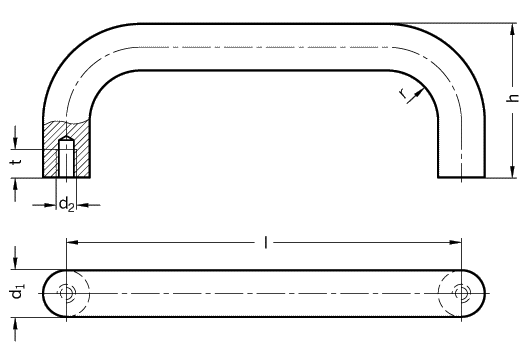

d1 Length l d2 h r t
          min.

20 200 M 8 68 22 15
20 250 M 8 68 22 15
20 300 M 8 68 22 15
20 350 M 8 68 22 15

28 250 M 10 78 32 15
28 300 M 10 78 32 15
28 350 M 10 78 32 15
28 400 M 10 78 32 15
Specification Information How to order
Aluminum (AL)

Plastic coated
matt black (SW)
RAL 9005 textured finish

Cabinet "U" handles d1 = 28
are manufactured out of
aluminum tubing with
a wall thickness of 4 mm and
fitted with threaded aluminum
bushings

 Cabinet "U" handles GN 426 are from drawn "aluminum.

Length other than standard are available - "especially extra long versions.

 Cabinet "U" handle
GN 426-AL-28-300-SM

Code No. 426
Material AL
d1 28
Length l 300
Finish SM
