Cabinet "U" handles |
GN 559 |

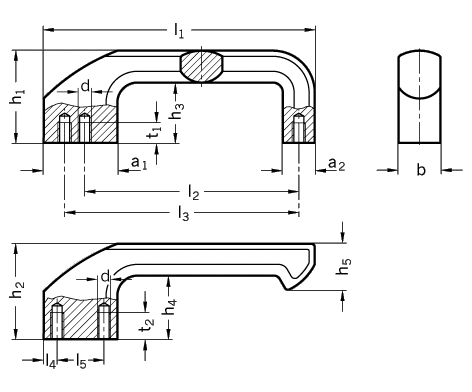

| Type A closed type | Type B open ended type |
| l1 | a1 | a2 | b | d | h1 | h2 | h3 | h4 | h5 | l2 | l3 | l4 | l5 | t1 | t2 |
| min. | min. | ||||||||||||||
| 162 | 38 | 19 | 25 | M 8 | 55 | 57 | 36 | 38 | 28 | 128 | 140 | 8 | 22 | 12 | 16 |
| Specification | Information | How to order |
| Aluminum
Plastic coated |
A special characteristic of the Handle GN 559 is the thumb rest pad on the front of the leg. At the same time the extended leg offers an open ended version with wide access. Handles GN 559 are known for their high stability . They are fixed by two M8 screws whereby type A offers two alternative hole centers (l2 or l3). |
Cabinet "U" handle GN 559-162-B-SW
Code No. 559 |
|
|
|
