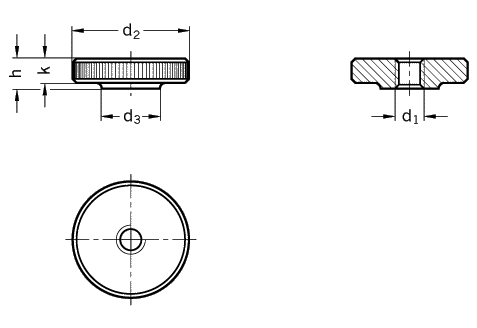

St. Steel - Flat knurled nuts |
Extract DIN 467 |
| d1 | d2 | d3 | h | k | |
| M 4 | 16 | 8 | 4 | 3,5 | |
| M 5 | 20 | 10 | 5 | 4 | |
| M 6 | 24 | 12 | 6 | 5 | |
| M 8 | 30 | 16 | 8 | 6 |
| Specification | How to order | |
| Stainless Steel (NI) German Standard No. 1.4305 visible face fine turned matt, shot blasted |
St. Steel- Flat knurled nut DIN 467-M8-NI Code No. 467 |
|
