St. Steel - Hand knobs |
GN 5335 |

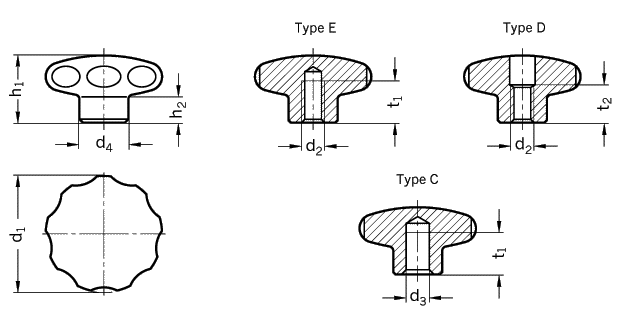

| Type D with threaded through bore | |
| Type E with threaded blind bore | Type C with plain blind bore, Tol. H7 |
| d1 | d2 | d3 H7 | d4 | h1 | h2 | t1 | t2 | |
| Thread | Bore (B) | min. | ||||||
| 40 | M 6 | M 8 | B 8 | 18 | 26,5 | 11 | 12/15 | 13 |
| 50 | M 8 | M 10 | B 10 | 21 | 29 | 12 | 15/18 | 16 |
| 60 | M 10 | M 12 | B 12 | 25 | 33 | 12 | 18/22 | 20 |
| Specification | Information | How to order |
| Stainless steel German Standard No. 1.4305 matt shot-blasted |
St. Steel-Hand knobs GN 5335 are a special
development intended for the food processing machinery industry. Large
radii and smooth surfaces have been introduced to meet the highest
hygienic demands of today.
Hand knobs GN 6336.1
/ GN 6336.2 |
St. Steel-Hand knob GN 5335-50-M10-E Code No. 5335 |
|
|
