Aluminum Hand knobs |
GN 5336 |

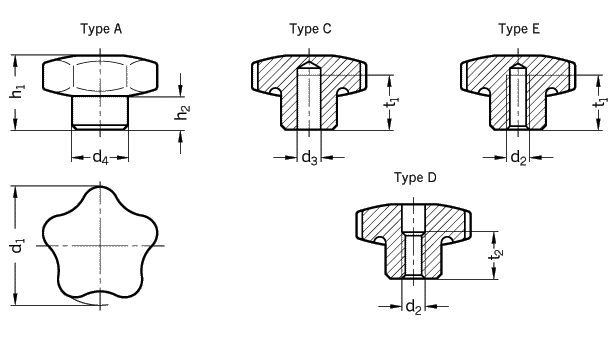

| Type A casting only | Type D with threaded through bore |
| Type C with plain blind bore, Tol. H7 | Type E with threaded blind bore |
| d1 | d2 | d3 H7 | d4 -0,5 | h1 -1 | h2 ~ | t1 | t2 | |
| Thread | Bore (B) | min. | ||||||
| Type E | Type D | Type C | ||||||
| Type E | ||||||||
| 40 | M 6 | M 8 | B 8 | 15 | 25 | 12,5 | 15 | 15 |
| 50 | M 8 | M 10 | B 10 | 19 | 32 | 16 | 18 | 20 |
| 60 | M 10 | M 12 | B 12 | 21 | 40 | 20 | 22 | 26 |
| 70 | M 12 | M 16 | B 16 | 26 | 46 | 23 | 28 | 32 |
| Specification | Information | How to order |
| Aluminum
matt (MT) polished (PL) Type A (without bore) is only available in matt (MT). |
Hand knobs GN 5336 are forged, therefore a close
grain structure is maintained providing a high tensile strength and a
smooth surface.
Possible casting flash is invisible due to the applied advantageous production techniques. |
Hand knob GN 5336-50-M10-E-MT Code No. 5336 |
|
|
