  		 female
Lifting eye bolts		 Extract from
DIN 582

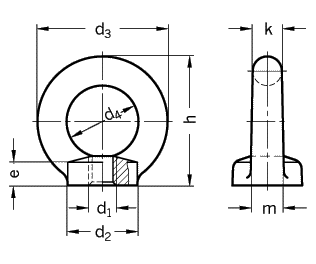

d1 d2 d3 d4 e h k m F1 [N] F2 [N]

M 8 20 36 20 8,5 36 8 10 1400 950
M 10 25 45 25 10 45 10 12 2300 1700
M 12 30 54 30 11 53 12 14 3400 2400

M 16 35 63 35 13 62 14 16 7000 5000
M 20 40 72 40 16 71 16 19 12000 8300
M 24 50 90 50 20 90 20 24 18000 12700

M 30 65 108 60 25 109 24 28 36000 26000
M 36 75 126 70 30 128 28 32 51000 37000
Specification Information How to order
Steel

Forged steel anealed

Contact face machined

zinc plated, blue passivated

 When installing female lifting eye bolts DIN 582 it is of utmost importance to ensure that the face is in firm contact with the mating face.

Do not apply load across the face of the ring !

The values given in the table above are only applicable when the thread length of bolt is 0,8 x d1 and the tensile strength of 500 N/mm2 is not surpassed.

 Lifting eye bolt
DIN 582-M12

Code No. 582
d1 M12
