Indexing plungers
GN 607

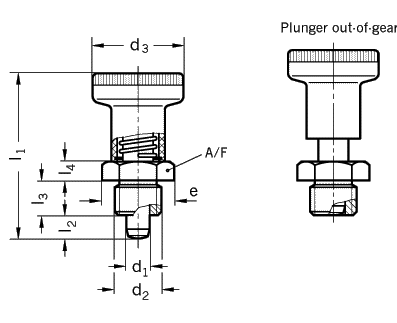

Type A without lock nut
Type AK with lock nut
d1 d2 d3 e~ l1 l2 l3 -0,15 l4 A/F Spring load N~ Axial
Plunger
 -0,02
 -0,04
Bore H7		         min.       initial end load [N]

6 M 12 x 1,5 25 19,6 45 6 10 5 17 8,5 22 400
8 M 16 x 1,5 31 21,9 54 8 12 6 19 15,5 28 500
Specification Information How to order
Steel

blackened

Plunger
hardened and ground

Knob
Plastic (Technopolymer)
black matt finish
not removable

ISO-fits

 A special feature of indexing plungers GN 607 is their reduced dimension.

Distance bushings
(hints for installation)GN 609

Indexing plungers GN 608
(mounting with countersunk screws)

 Indexing plunger
GN 607-8-AK

Code No. 607
d1 8
Type AK
