for spring plungers GN 614 Holder for spring plungers |
GN 614.1 |

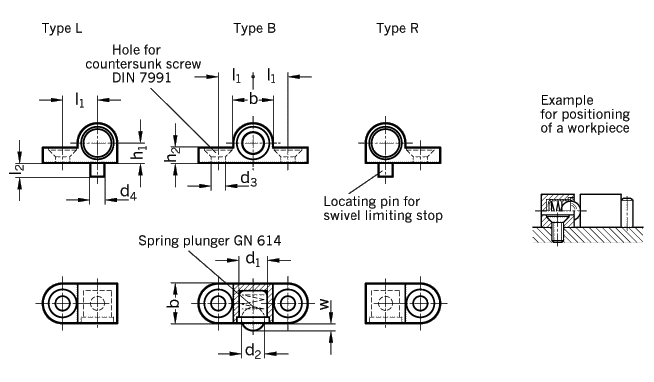

| Type L Fixing screw left | Type B Fixing screw both sides |
| Type R Fixing screw right |
| d1 | d2 | d3 | d4 -0,05 | b | h1 �0,05 | h2 | l1 �0,05 | l2 | w -0,1 | |
| Bore for | Ball-� | for countersunk screw | Compression | |||||||
| plunger | DIN 7791 | |||||||||
| GN 614 | ||||||||||
| 6 | 5 | 3,2 | M3 | 3 | 8,5 | 4,25 | 3,2 | 7,5 | 3 | 1,5 |
| 8 | 6,5 | 4,3 | M4 | 4 | 10,5 | 5,25 | 4,2 | 9,5 | 4 | 1,8 |
| Specification | Information | How to order |
| Zinc pressure die casting
nickel plated |
Holders for spring plungers GN 614.1 are standard parts which simplify the use of spring plungers GN 614. They are of compact design. | Holder for spring plunger GN 614.1-6-R Code No. 614.1
Spring plungers GN 614 have to be ordered separately. |
|
|
