Spring plungers with limit switch GN 615.6

with limit switch
Spring plungers

GN 615.6

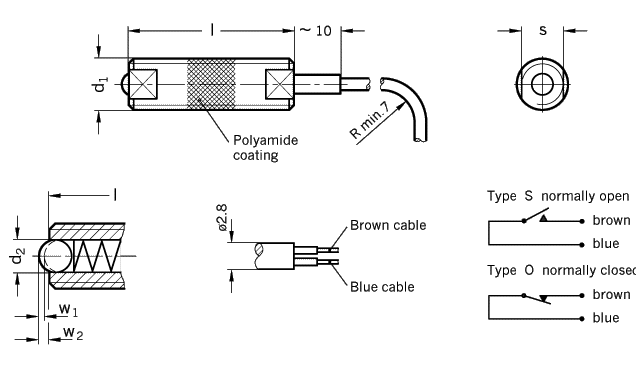

Type S normally open Type O normally closed

d₁ d2 l s w₁ �0,1 w₂ �0,1 Spring load N ~

Switching Spring initial end

stroke compression

M 6 3 20 5,5 0,4 0,8 6 13

M 8 4 23 7 0,5 1 8 16

M 10 5 27 8 0,6 1,2 10 20

Specification Information How to order

Screw
Steel
nickel plated
hardened
End limit switch
Voltage: 24 V
20 mA DC
50 mA AC
Switch life: 5 x 10⁶switchings
Temperature range:
from -10 �C up to +50 �C
Protection classification: IP40
further information available
Supply cable
dia. 2,8; 2 phase
max . tensile load 20 N
grey for type S
black for type O
Spring plungers GN 615.6 are used for end stops as well as contacts
Simultaneously an electrical control signal can be released from the built-in limit switch.
Attention:
If the screw-in thread is earthed the blue cable has to be connected to the mass.
Technical information regarding thread locking by polyamide patchis available.
Spring plunger
GN 615.6-M8-S
Code No. 615.6
d₁ M8
Type S

d₁	d2	l	s	w₁ �0,1	w₂ �0,1	Spring load N ~
				Switching	Spring	initial	end
				stroke	compression

M 6	3	20	5,5	0,4	0,8	6	13
M 8	4	23	7	0,5	1	8	16
M 10	5	27	8	0,6	1,2	10	20
