with spherical seating St. Steel - Hexagon nuts |
Extract from DIN 6330 |

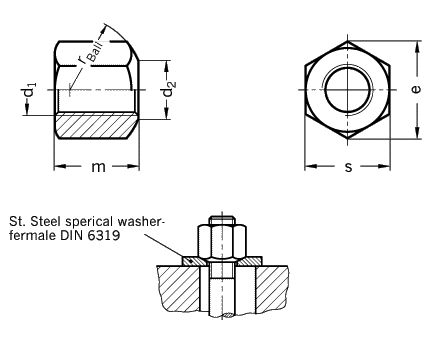

| Type B with one-sided spherical seating |
| d1 | d2 H14 | e ~ | m | s | r |
| M 8 | 9 | 15 | 12 | 13 | 11 |
| M 10 | 11,5 | 18 | 15 | 16 | 15 |
| M 12 | 14 | 20,5 | 18 | 18 | 17 |
| M 16 | 18 | 27,7 | 24 | 24 | 22 |
| M 20 | 22 | 34,6 | 30 | 30 | 27 |
| Specification | Information | How to order |
| Stainless Steel (NI) German Standard No. 1.4305 |
St. Steel - Hexagon nuts DIN 6330 are used
for applications where constant removal and re-fitting is required (m =
1,5 x d1).
The spherical seating together with female washers DIN 6319 allows excessive positional inaccuracies to be equalised. |
St. Steel - Hexagon nut DIN 6330-M16-B Code No. 6330 |
|
|
