Hand knobs		 Extract from
DIN 6336

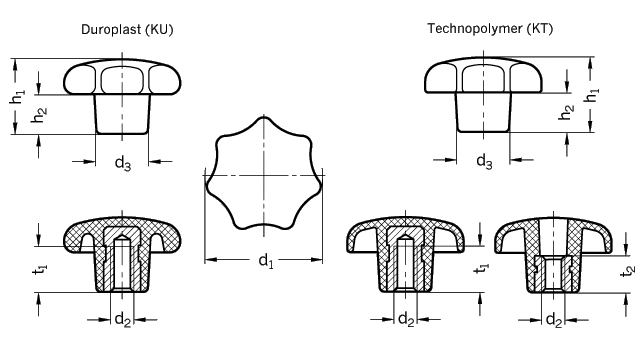

Type K with threaded blind bore Type D with threaded through bore
d1 d2 d3 h1 h2 t t2
  Plastic (KU) Plastic (KT)       min.
  Type K Type K Type D

20 M 4 - - - - 10 13 7 6,5 -
25 M 5 - M 5 - - 12 16 8 9,5 -
32 M 6 - M 6 - - 14 20 10 12 -

40 M 6 M 8 M 6 M 8 M 8 18 25 13 14 13
50 M 8 M 10 M 8 M 10 M 10 22 32 17 18 17
63 M 10 M 12 M 10 M 12 M 12 26 40 21 22 21

80 M 12 M 16 M 12 M 16 - 35 50 25 22 / 30 -
Specification Information How to order
Plastic (KU)
Duroplast (Phenolic)

black, shiny

Insert brass, size 20
From size 25 onwards,
Insert steel, zinc plated

If brass (MS) is desired,
please add MS on order code

Plastic (KT)
Technopolymer (Polyamide)
reinforced

black matt finish

Insert steel, zinc plated

 Execution technopolymer (KT) can be delivered in various colours at certain minimum quantities.

Hand knobs GN 6336.4
(male thread)

Hand knobs GN 6336.1 /GN 6336.2
(Plastic with all steel boss)

Quick release hand knobsGN 6336.3

 Hand knob
DIN 6336-KT-63-M12-K
Code No. 6336
Material KT
d1 63
d2 M12
Type K

Hand knob
DIN 6336-KU-63-M10-K-MS
Code No. 6336
Material KT
d1 63
d2 M10
Type K
Brass insert MS
