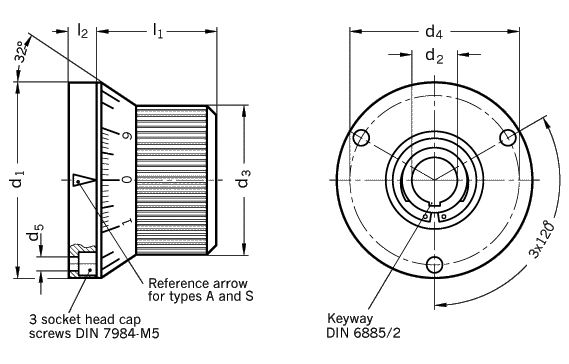

  		 with stepless positioning
Adjustable knob
GN 700


Type A with arrow
Type B plain, without graduations or numbers Type S with scale 0...9, 100 graduations
d1 d2 H7 d3 d4 -0,2 d5 l1 l2 l3
  Bore with keyway (K)

66 K 12 K 14 52 55 5,5 44 9 40
Specification Information How to order
Steel

blackened

Blocking mechanism
hardened and ground

Scale ring and rotating knob
Aluminum, black anodized

Scale (Type S) and
arrow (Type A) are
LASER-engraved
light colour

 With this adjustable knob GN 700 a shaft can be infinitely adjusted in both directions. The anti-backlash mechanism ensures the firm locking of the shaft in any position.

This mechanism prevents any uncontrolled movement of the shaft. The locking action is a safety feature to prevent unwanted re-adjustments caused by backlash and vibration.

Other than the standard scale type S can be supplied; seeorder examples.

Indexing mechanismsGN 200

Indexing leversGN 215

 Adjustable knob
GN 700-66-K14-S

Code No. 700
d1 66
Keyway K
d2 14
Type S
