press fit Side thrust pins |
GN 715 |

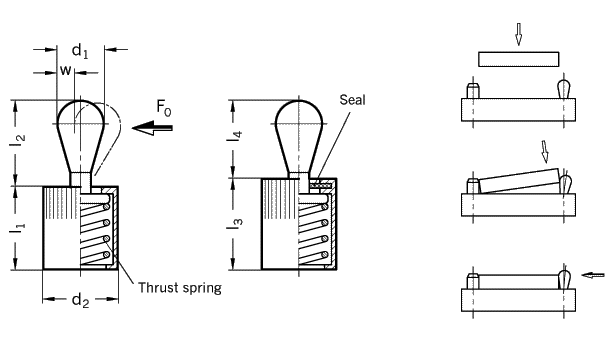

| Type SA thrust pin steel, without seal | Type SB thrust pin steel, with seal |
| Type KA thrust pin technopolymer, without seal | Type KB thrust pin technopolymer, with seal |
| d1 | Side thrust F0 [N] | a1 | a2 | d2 | d3 H8 | h | |||
| Thrust pin | Thrust pin | min. | |||||||
| Type SA/SB | Type KA/KB | ||||||||
| 3 | 10 | 20 | 40 | 10 | 1,5 | 3,5 | 6 | 6 | 7 |
| 5 | 20 | 50 | 100 | 20 | 2,5 | 5,7 | 10 | 10 | 12 |
| 6 | 40 | 75 | 150 | 40 | 3 | 7,7 | 10 | 10 | 12 |
| 8 | 50 | 100 | 200 | 50 | 4 | 8,9 | 12 | 12 | 14 |
| 10 | 100 | 200 | 300 | 100 | 5 | 10,7 | 16 | 16 | 18 |
| d1 | l1 -1 | l2 | l3 -1 | l4 | w | x1 | x2 | Code No. |
| Mounting tool | ||||||||
| 3 | 7 | 4 | 7 | 4 | 1 | 1 | 0,75 | GN 715.1-3 |
| 5 | 11 | 6,7 | 11,5 | 6 | 1,6 | 1,7 | 1,3 | GN 715.1-5.6 |
| 6 | 11 | 10,7 | 11,5 | 10 | 2 | 1,9 | 1,4 | GN 715.1-5.6 |
| 8 | 13 | 13,9 | 14 | 13 | 2,6 | 2,7 | 2,1 | GN 715.1-8 |
| 10 | 17 | 16,7 | 18 | 16 | 3,2 | 3,4 | 2,7 | GN 715.1-10 |
| Specification | Information | How to order |
| Body aluminum
without seal: silver passivated Thrust pin steel Thrust pin plastic (DELRIN) Thrust spring coding size 3,6,8,10 only size 5 Seal rubber |
Spring loaded side thrust pins GN 715 are versatile
and practical elements for holding, positioning and clamping of
workpieces.
They eliminate costly alternatives, are space saving and easy to install. The knurled body requires only a hole tolerance of H8. For easy mounting suitable tool GN 715.1 -... is available. Side thrust pins GN 713 Eccentric bushesGN 715.2 Side thrust pinsGN 716 |
Side thrust pin GN 715-5-50-SA Code No. 715 |
|
|
