Control knobs

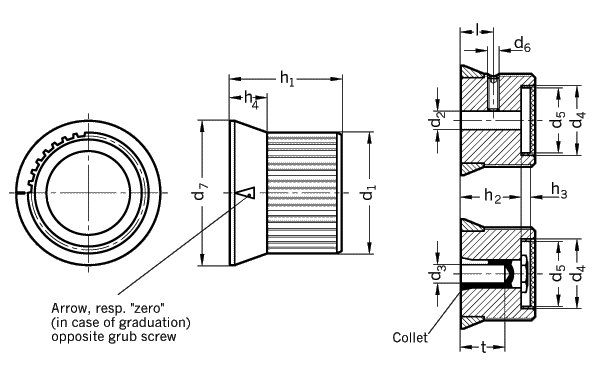

GN 726.2


Type A with arrow
Type B plain, without graduations or numbers Identification No. 1 with grub screw
Type S scale 0...9, 20 graduations Identification No. 2 with collet
d1 d2 H8 d3 d4 d5 d6 d7 h1 h2 h3 h4 l t
  Bore (B) Collet
  (Z)

27 B 6 - Z 6 20 18 M 4 33,5 26 20 4,3 9 14 14
34 B 6 B 8 Z 8 25 23 M 5 41 30 24 4,2 10 15 17
42 B 8 B 10 Z 10 32 30 M 5 50 34 28 4 11 16 20
Specification Information How to order
Aluminum

black anodized

Scale ring
Plastic, black
pressed on

Arrow, graduations
and numbers
LASER-engraved, light colour

Hub cover
Plastic, light grey

Collet / hex. nut
Brass

St.Steel - Grub screw DIN 916
with int. hexagon
with serrated point

 The light grey cover makes these control knobs GN 726.2 very attractive and at the same time it covers the hub. The cover also lends itself for your logo or other symbols.

The cover is held in place by firmly pushing it into the recess. It can be removed by inserting a screw driver into the slot provided.

The collet type provides a simple way of positioning and locking the control knob to the shaft.

Other than the standard scale type S can be supplied; seeorder examples.

Control knobs
(short version without scale)GN 726

Control knob
GN 726.2-27-Z6-S-2

Code No. 726.2
d1 27
d3 (d2) Z6
Type S
Ident. No. 2
