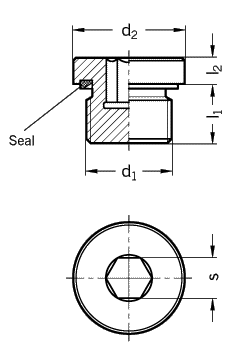

Threaded plugs
GN 749


Type A sealing ring synthetic rubber NBR (PERBUNAN)
d1   d2 h14 l1 l2 s max. recommended
            permissible torque
            operating [Nm]
            pressure
            [PB]

G 1/8 M 10 x 1 14 8 4 5 400 10
� M 12 x 1,5 17 12 5 6 400 20
G 1/4 M 14 x 1,5 19 12 5 6 400 26 / 30

G 3/8 M 16 x 1,5 22 12 5 8 400 34
� M 18 x 1,5 24 12 5 8 400 42
G 1/2 M 22 x 1,5 27 14 5 10 400 60

� M 26 x 1,5 32 16 5 12 400 70
G 3/4 M 27 x 2 32 16 5 12 400 85
G 1 M 33 x 2 40 16 6,5 17 400 130

G 1 1/4 � M 42 x 2 50 16 6,5 22 250 240
Specification Information How to order
Steel
Tensile strength 500 N/mm2

ultrasonically checked
zinc plated, yellow passivated

Type A
Temperature resistant
up to 120 °C

Seal synthetic rubber
NBR (PERBUNAN)

 The dimensions of the threaded plugs GN 749 comply with DIN 908, but deviating from the latter is the elastic seal.

This seal is retained in a radial undercut in the mating face which prevents it from dropping out and in particular it does not extrude when the plug is tightened. For this reason the seal can be of a softer material which will give better sealing.

 Threaded plugs
GN 749-G 3/4-A

Code No. 749
d1 G 3/4
Type A
