  		 with swivel pressure pad in steel
Clamping bolts
GN 802

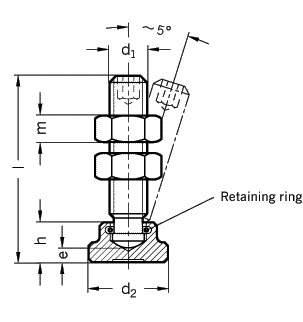

d1 Length l  d2 e h m

*M 5 37       14 – 10 4,7
M 6 32 42 52   12 2,2 7 5,2
M 8 38 48 63 83 16 3 9 6,8

M 10 44 54 64 84 20 3,6 11 8,4
M 12 55 65 85 105 25 4,5 13 10,8
Specification Information How to order
Grub screwsDIN 6332

Thrust padsDIN 6311

Hexagon nuts
ISO 4032
Steel
zinc plated, blue passivated

* Clamping bolt M 5:
bolt end and clamping pad
not hardened,
pad not removable.

 By means of the retaining ring in the clamping pad a simple and toggle link between bolt and clamping pad is created.

The clamping pad is removable, which allows direct clamping with the hardened bolt end.

Levelling feetGN 343.1 ... 343.8

Ball joint thrust padsGN 346

 Clamping bolt
GN 802-M8-48

Code No. 802
d1 M8
Length l 48

The two hexagon nuts are included parts of the order.
