  		 with pressure pad in neoprene
Clamping bolts
GN 708

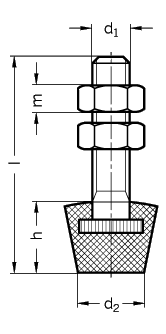

d1 Length l d2 h m

M 5 45 10 11 4,7
M 6 55 13 12 5,2
M 8 68 16 18 6,8

M 10 77 20 21 8,4
Specification   How to order
Bolt
Steel, tensile strength 500 N/mm2
zinc plated, blue passivated

Hexagon nuts
ISO 4032
Steel
zinc plated, blue passivated

Pressure pad
neoprene 85 shore
bonded to the bolt
black

 Clamping bolt
GN 708-M8-68

Code No. 708
d1 M8
Length l 68

The two hexagon nuts are included parts of the order.
