  		 with / without protective cap
Clamping bolts
GN 807

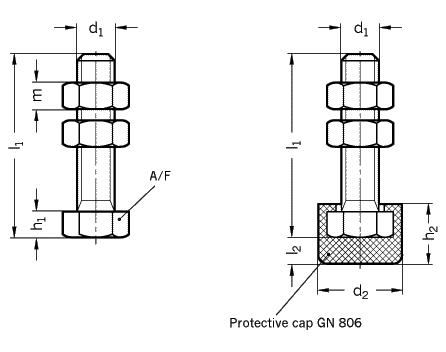

Type A without protective cap Type B with protective cap
d1 Length l1 d2 h1 h2 l2 m A/F

M 4 23     11 3 6,5 2,5 3,2 7
M 5 38     12,5 3,5 8 2,5 4,7 8
M 6 29 49   15 4 10 4 5,2 10

M 8 36 56 96 19 5,5 13 5,5 6,8 13
M 10 43 77 127 24 6,5 16 7 8,4 16
M 12 53 88 128 26 7,5 19 8,5 10,8 18

*M 14 54 � 9 � � 12,8 21
Specification Information How to order
Protective capsGN 806

Hexagon bolt
ISO 4017 / DIN 934
Steel, tensile strength 800 N/mm2
zinc plated, blue passivated

Hexagon nuts
ISO 4032
Steel
zinc plated, blue passivated

* Clamping bolts M 14
is not available as type B
(with protective cap).

 The elastic protective caps GN 806 can easily be fitted to the bolt head. Clamping bolt
GN 807-M8-56-B

Code No. 807
d1 M8
Length l1 56
Type  B




The two hexagon nuts are included parts of the order.
