St. Steel - Clamp nuts |
GN 99.6 |

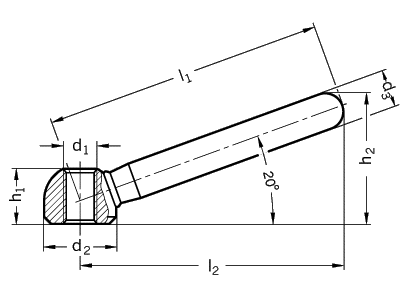

| Length l1 | d1 | d2 | d3 | h1 | h2 ~ | l2 ~ |
| 63 | M 8 | 16 | 9 | 12,5 | 30,5 | 60 |
| 80 | M 10 | 20 | 11 | 15 | 37 | 76 |
| 100 | M 12 | 25 | 14 | 19 | 46 | 95 |
| 125 | M 16 | 32 | 18 | 25 | 58,5 | 119 |
| 160 | M 20 | 40 | 20 | 31 | 73 | 152 |
| Specification | Information | How to order |
| Stainless Steel German Standard No. 1.4301 matt shot-blasted Shaft butt-welded to nut |
Latest production techniques make these St. Steel -Clamp nuts extremely good value.
St. Steel-Clamping levers DIN 99 St. Steel-Clamp nuts with double leverGN 99.8 |
St. Steel-Clamp nut GN 99.6-100-M12
Code No. 99.6 |
|
|
|
