St. Steel - Clamping levers |
Extract from DIN 99 |

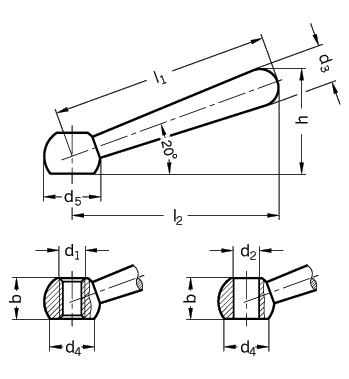

| Type N angled lever with threaded bore | Type L angled lever with plain bore, Tol. H7 |
| l1 | d1 | d2 H7 | b | d3 | d4 ~ | d5 | h ~ | l2 ~ |
| Thread | Bore (B) | |||||||
| 50 | M 6 | - | 9,5 | 8 | 11 | 12 | 24 | 48 |
| 63 | M 8 | B 8 | 12 | 10 | 12,5 | 16 | 30,5 | 60 |
| 80 | M 10 | B 10 | 14,5 | 13 | 16 | 20 | 38 | 76 |
| 100 | M 12 | B 12 | 18,5 | 16 | 20 | 25 | 47 | 95 |
| 125 | M 16 | - | 24 | 20 | 25 | 32 | 59,5 | 119 |
| Specification | Information | How to order |
| Stainless Steel (NI) German Standard No. 1.4305 matt shot-blasted |
St. Steel-Clamping levers DIN 99 Type A can be supplied without bore and flats i. e. with a solid ball.
St. Steel-Clamp nuts GN 99.6 |
St. Steel- Clamping lever DIN 99-63-M8-N-NI
Code No. 99 |
|
|
|
