PULL to disengage Adjustable tension levers |
GN 212.3 |

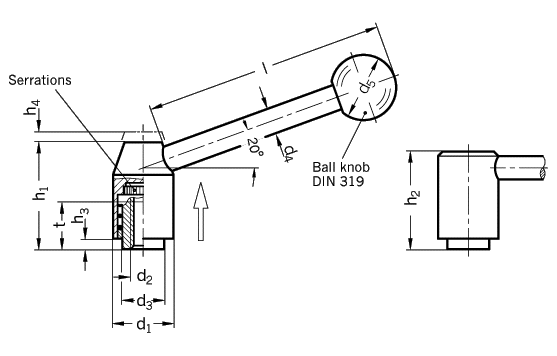

| Type E angled lever | Type D straight lever |
| d1 | d2 | d3 | d4 | d5 | h1 | h2 | h3 | h4 | l | t | |
| metric / UNC | min. | ||||||||||
| 21 | M 6 | M 8 | 13,5 | 8 | 20 | 33,5 | 31 | 1 | 4 | 70 | 10 |
| 1/4 x 20 | 5/16 x 18 | ||||||||||
| 24 | M 8 | M 10 | 16 | 10 | 25 | 40 | 37 | 2,5 | 4,5 | 96 | 14 |
| 3/8 x 16 | 5/16 x 18 | ||||||||||
| 28 | M 10 | M 12 | 19 | 12 | 30 | 48,5 | 44,5 | 4,5 | 4,5 | 110 | 17 |
| 3/8 x 16 | 1/2 x 13 | ||||||||||
| 33 | M 12 | M 16 | 23 | 12 | 32 | 55 | 51,5 | 6 | 5,5 | 124 | 23 |
| 1/2 x 13 | 5/8 x 11 | ||||||||||
| 40 | M 16 | M 20 | 28 | 14 | 35 | 68 | 64 | 6 | 5,5 | 138 | 36 |
| Specification | Information | How to order |
| Steel blackened
Ball knob DIN 319 Adjustable tension levers with cylindrical knobs (instead of ball knobs) available under Code No. GN 212.4. Cylindrical knob GN 519 |
Adjustable tension levers GN 212.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling the lever, disengages the serrations and al-lowing it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
Adjustable tension levers
Tension levers |
Adjustable tension lever GN 212.3-28-M12-E
Code No. 212.3 |
|
|
|
