PULL to disengage
Adjustable tension levers

GN 212.3


Type E angled lever Type D straight lever

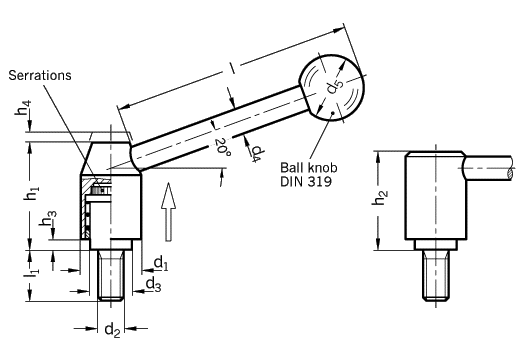

d1 d2   Length l1 d3 d4 d5 h1 h2 h3 h4
  metric/UNC

21 M 8 - 12 16 20 25 32 40 50 63 13,5 8 20 33,5 31 1 4
  M 10 - 20 25 32 40 50 63 80
  5/16x18 3/8x16 16 20 25 32 40 45 50 63

24 M 10 M 12 16 20 25 32 40 50 63 80 16 10 25 40 37 2,5 4,5
  3/8x16 - 16 20 25 32 40 45 50 63

28 M 10 M 12 16 20 25 32 40 50 63 80 19 12 30 48,5 44,5 4,5 4,5
  3/8x16 1/2x13 25 32 35 40 45 50 63

33 M 12 M 16 25 32 40 50 63 80     23 12 32 55 51,5 6 5,5
  1/2x13 5/8x11 32 40 55 63

40 M 16 - 32 40 50 63 80       28 14 35 68 64 6 5,5
M 20 - 40 50 63 80
Specification Information How to order
Steel

blackened

Ball knob DIN 319
Plastic, black

Adjustable tension levers with cylindrical knobs (instead of ball knobs) available under Code No. GN 212.4.

Cylindrical knob GN 519
Plastic (Duroplast)
black

Adjustable tension levers GN 213.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

Adjustable tension levers GN 212.5
(St. Steel)

Adjustable tension lever
GN 212.3-28-M12-80-E

Code No. 212.3
d1 28
d2 M12
l1 80
Type E
