with retractable handpiece Cranked handles |
GN 471.3 |

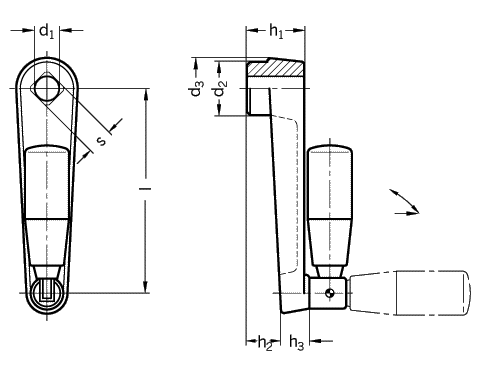

| Length l | d1 H7 | s H11 | d2 | d3 | h1 | h2 | h3 | � |
| Bore (B) | Square (V) | Retractable handle |
||||||
| GN 598.3 | ||||||||
| 100 | B 12 | V 12 | 27 | 30 | 28 | 17 | 13 | 23 |
| 125 | B 14 | V 14 | 32 | 35 | 34 | 22 | 14 | 23 |
| 160 | B 17 | V 17 | 35 | 39 | 38 | 26 | 14 | 26 |
| Specification | Information | How to order |
| Body Aluminum Gravity die casting
Plastic coated Hub face turned
Retractable handles GN 598.3 Square boreDIN 79 |
Cranked handles GN 471.3 with retractable handpiece are for applications where the handpiece must not protrude. The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle in both end positions. A positive lock is achieved in the operating position by way of a taper seating. |
Cranked handle GN 471.3-125-V14
Code No. 471.3 |
|
|
|
