Cranked handles

GN 472.3

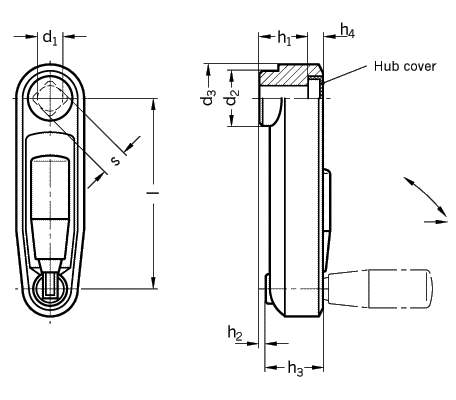

Length l d1 H7 s H11 d2 d3 h1 h2 h3 h4
  Bore (B) Square (V)             Retractable
handle
                  GN 598.3

80 B 10 V 10 23 29 20 2,5 26 4,3 18
100 B 12 V 12 26 34 24 4 30 4,2 22
125 B 14 V 14 28 36 31 9 37 4,2 23
Specification Information How to order
Body
Aluminum
Gravity die casting

Plastic coated
black
RAL 9005 textured finish

Hub face turned

Hub cover
Plastic, light grey

Retractable handles GN 598.3
Plastic (Duroplast)
black

Square boreDIN 79

The shape of the cranked handles GN 472.3 with retractable handpiece is modern, attractive and meets all demands of industrial designers.

They are for applications where the handpiece must not protrude.

The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle in both end positions.

A positive lock is achieved in the operating position by way of a taper seating.

Cranked handle
GN 472.3-100-V12

Code No. 472.3
Length l 100
s (d1) V12
