Thrust pads |
GN 6311.1 |

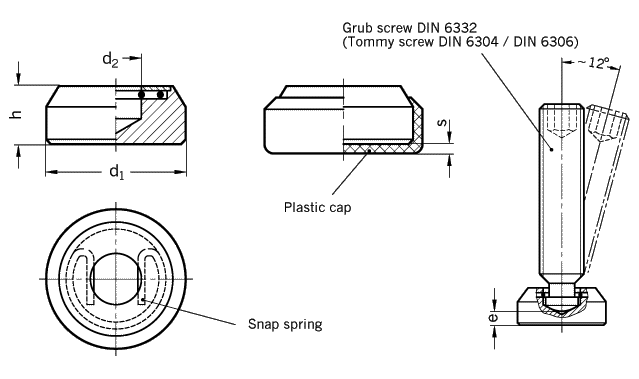

| Type A without plastic cap | Type K with plastic cap |
| d1 | d2 +0,2 | e | h | s | Thread size |
| grub screw | |||||
| 16 | 6,3 | 2,2 | 8 | 1,5 | M 8 |
| 20 | 8,4 | 2,6 | 10 | 1,5 | M 10 |
| 25 | 8,4 | 2,9 | 11 | 1,5 | M 12 |
| 32 | 12,5 | 4,5 | 14 | 1,5 | M 16 |
| Specification | Information | How to order |
| Steel
blackened Snap spring Plastic cap |
Thrust pads GN 6311.1 are used in conjunction with
grub screws fitted with thrust point (grub screws DIN 6332, tommy
screws DIN 6304 and DIN 6306) to transmit clamping force. They
align themselves on uneven and non-parallel surfaces and thus prevent the
rotating force being transmitted to the workpiece.
The plastic cap prevents damage to delicate workpieces. The unique shape of the non-removable retaining ring permits easy insertion and removal of grub screws into or from the thrust pad. Thrust pads GN 6311.1 can be used in conjunction with DIN 6332 grub screws as levelling pad. Grub screwsDIN 6332 Tommy screwsDIN 6304 Tommy screwsDIN 6306 |
Thrust pad GN 6311.1-25-K Code
No. 6311.1 |
|
|
