with thrust point Grub screws |
Extract from DIN 6332 |

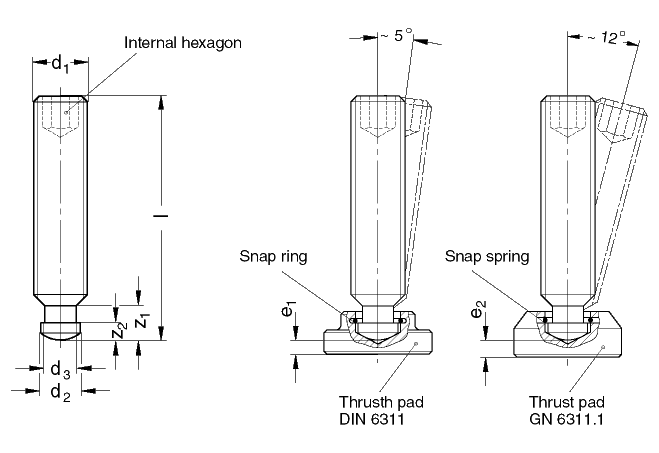

| Type SK with internal hexagon, thrust point hardened | Type SKN with internal hexagon, not hardened |
| d1 | Length l | d2 h11 | d3 | e1 ~ | e2 ~ | Internal
Hexagon |
z1 ~ | z2 ~ | |||||
| M 6 | 30 | 35 | 40 | 45 | 50 | 4,5 | 4 | 2,2 | � | 3 | 5,4 | 2,5 | |
| M 8 | 35 | 40 | 45 | 50 | 60 | 70 | 6 | 5,4 | 3 | 2,2 | 4 | 6,8 | 3 |
| M 10 | 45 | 50 | 55 | 60 | 65 | 80 | 8 | 7,2 | 3,6 | 2,6 | 5 | 8,2 | 4,5 |
| M 12 | 50 | 60 | 65 | 70 | 80 | 100 | 8 | 7,2 | 4,5 | 2,9 | 6 | 8,6 | 4,5 |
| M 16 | 65 | 70 | 75 | 80 | 100 | 125 | 12 | 11 | 5,3 | 4,5 | 8 | 10,6 | 5 |
| M 20 | 80 | 90 | 100 | 125 | 150 | 15,5 | 14,4 | 5,6 | � | 10 | 12,4 | 5,5 | |
| Specification | Information | How to order |
| Steel Tensile strength 500 N/mm2 blackened Type SK |
The thrust point of these screws DIN 6332 is designed
to be used with or without the thrust pad for clamping. The snap ring
resp. spring is a simple and quick method to connect the thrust pad to the
grub screw.
Through the combination of grub screws DIN 6332 with various handles or knobs, simple clamping screws can be created. Grub screws GN 913.3 Thrust padsDIN 6311 Thrust padsGN 6311.1 |
Grub screw DIN 6332-M12-60-SK Code No. 6332 |
|
|
