with male thread
Star knobs

GN 6335.4

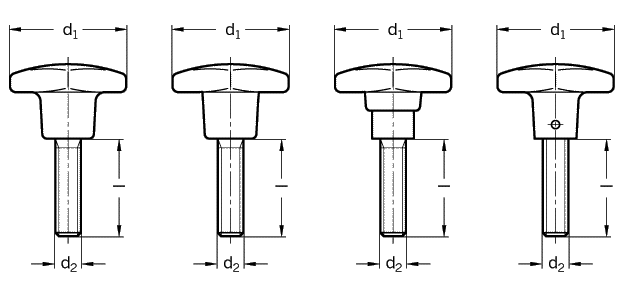

Type SK Type ST Type TE Type SG
Star knob DIN 6335 Star knob GN 6335 Star knob GN 6335.2 Star knob DIN 6335
Type K Type K Type E Type E
Plastic (KU) Plastic (KT) Plastic Cast iron (GG)
Duroplast Technopolymer Technopolymer
d1 d2 Length l - Type ST, TE     Length l - Type SK, SG

32 M 6 16 20 25 30 35 45 16 20 25 30 35 45
40 M 8 16 20 25 30 40 55 15 20 25 30 40 55
50 M 10 25 30 35 45 55   25 30 35 45 55

63 M 12 30 35 40 50 60   30 35 40 50 60
80 M 16 30 40 50 60 70
Specification Information How to order
Hand knob details and
dimensions see:

DIN 6335 Type K
GN 6335.2 Type E
DIN 6335 Type E

On types SK / ST / TE
steel screws are zinc plated
and moulded in position

On type SG a grub screw is
screwed in and secured by a
cross-dowel.

Grub screwsGN 551.1

Should clamping with the boss face be necessary, then it is recommendable to use either type TE or type SG. Star knob
GN 6335.4-SK-63-M12-50

Code No. 6335.4
Type SK
d1 63
d2 M12
Length l 50
