 Plastic
Star knobs

DIN 6335

Type K with threaded insert

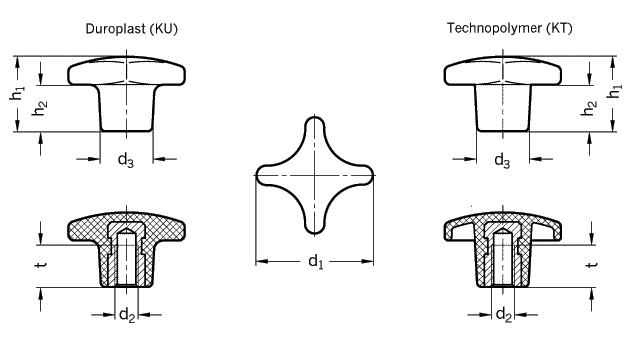

d1 d2 d3 h1 h2 t
Plastic (KU) Plastic (KT)
Type K Type K
25 M 5 - 12 16 8 9,5
32 M 6 M 6 14 20 10 12
40 M 8 M 8 18 25 13 14
50 M 10 M 10 22 32 20 18
63 M 12 M 12 26 40 25 22
80 M 16 M 16 35 50 30 30
100 M 20 - 34 65 38 30
Specification Information How to order
Plastic (KU)
Duroplast (Phenolic)

black, shiny

Insert brass, size 20
From size 25 onwards,
Insert steel, zinc plated

If brass (MS) is desired,
please add MS on
order code.

Plastic (KT)
Technopolymer (Polyamid)
reinforced

black matt finish

Insert steel, zinc plated

Execution technopolymer (KT) can be delivered in various colours at certain minimum quantities.

Star knobs
(male thread) GN 6335.4

Star knobs
(Plastic with all steel boss) GN 6335.1 / GN 6335.2

Star knob
DIN 6335-KU-63-M12-K
Code Nr. 6335
Material KU
d1 63
d2 M12
Type K
