Tri-ball handles
GN 10

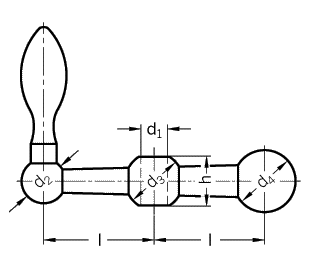

Type F with fixed handpiece
No. d1 H7 d2 d3 d4 h l t �
  Bore           min. Handpiece

100 7 13 16 18 13 25 11 10
101 8 15 19 20 17 28 14 13
102 8 16 20 22 17 34 15 14

103 10 18 23 25 19,5 41 17 16
104 12 20 26 28 21,5 50 19 18
Specification Information How to order
Steel

turned and polished

Fixed handlesDIN 39

 Tri-ball handles GN 10 allow fine adjustment.

An alternative in modern design are control handlesGN 112.1.

Control handles GN 112.1
(zinc die casting)

 Tri-ball handle
GN 10-104-B12-F

Code No. 10
No. 104
d1 B12
Type F
