Control handles |
GN 112.1 |
| l1 | d H7 | b | h1 | h2 | l2 | t | � | |
| Blind bore (S) | min. | Handpiece | ||||||
| 70 | S 8 | - | 17 | 19 | 11,5 | 26,5 | 12 | 18 |
| 80 | S 8 | - | 18 | 21 | 12,5 | 31 | 12 | 21 |
| 90 | S 10 | - | 19 | 23 | 13,5 | 35,5 | 15 | 21 |
| 100 | S 10 | S 12 | 20 | 25 | 14 | 40 | 17 | 23 |
| Specification | Information | How to order |
| Body Zinc die casting
Plastic coated
Revolving handles GN 598 |

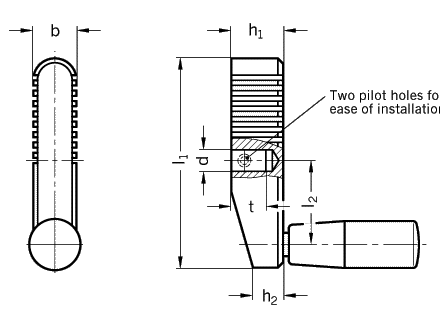

Control handles GN 112.1 are ergonomically shaped and of modern design. These cranked handles have the identical field of application as Tri-ball handles GN 10: they allow "fine adjustment. They are connected to a shaft by means of a cross pin. |
Control handle GN 112.1-90-S10
Code No. 112.1 |
| |
|
