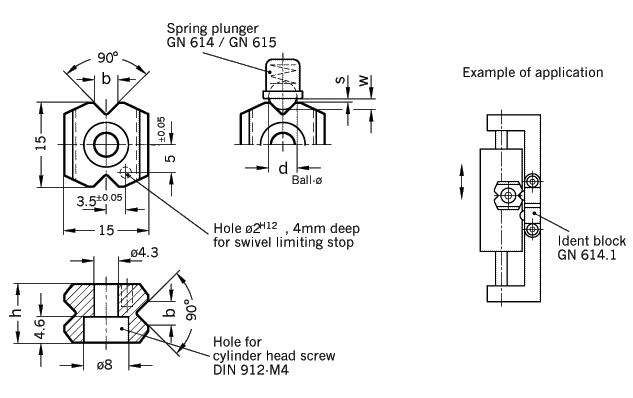

for spring plungers Indent blocks |
GN 250 |
| h | b �0,1 | for GN 614 | for GN 615 / GN 615.2 | ||||||
| size | d | w | s | size | d | w | s | ||
| min. | min. | ||||||||
| 8,5 | 3,4 | 6 | 5 | 1,6 | 0,9 | M 8 | 4,5 | 1,5 | 0,8 |
| 10,5 | 4,5 | 8 | 6,5 | 1,9 | 1 | M 10 | 6 | 2 | 1 |
| Specification | Information | How to order |
| Sintered Steel
Case hardened blackened |
Indent blocks GN 250 are used together with spring plungers for detent or positioning of sliders, flaps and similar applications. | Indent block GN 250-8,5 Code No. 250 |
|
|
