for spring plungers Ball buttons |
GN 249 |

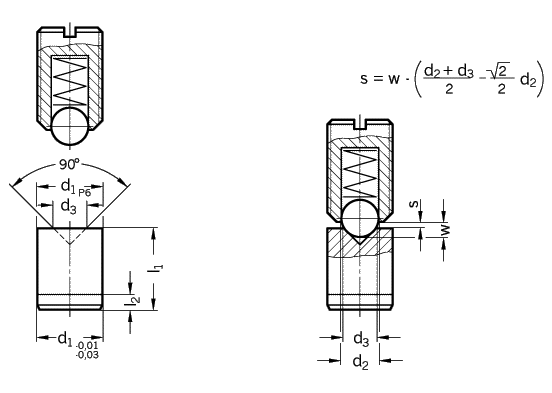

| d1 p6 | d2 | d3 | l1 �0,05 | l2 | w | s | s | s | s |
| for GN 614 | for GN 615 | for GN 615.1 | for GN 616 | ||||||
| 4 | 1,5 | 5 | 2 | - | M 4 = 0,6 | M 4 = 1,1 | M 4 = 1,1 | ||
| 5 | see corres- | 2 | 6 | 2 | see corres- | ( 4 = 0,4 | M 5 = 0,4 | M 5 = 1,5 | M 5 = 1,8 |
| 6 | ponding | 2 | 8 | 2 | ponding | ( 5 = 0,8 | M 6 = 0,9 | M 6 = 1,6 | M 6 = 2,1 |
| 8 | standard | 3 | 10 | 2 | standard | ( 6 = 1,1 | M 8 = 1,2 | M 8 = 1,3 | M 8 = 2,2 |
| 10 | sheets | 4 | 12 | 3 | sheets | ( 8 = 1,2 | M 10 = 1,2 | M 10 = 1,4 | M 10 = 1,8 |
| 12 | 6 | 14 | 3 | ( 10 = 1,9 | M 12 = 1,2 | M 12 = 1,7 | M 12 = 2,2 | ||
| 16 | 8 | 18 | 3 | ( 12 = 1,9 | M 16 = 1,6 | M 16 = 2,3 | M 16 = 2,5 |
| Specification | Information | How to order |
| Steel
hardened and ground |
Ball buttons GN 249 are mainly used when exact
positioning is needed.
These ball buttons are especially recommended for use with plungers with heavy spring loads. Spring plungersGN�614 Spring plungersGN�615 St. Steel-Spring plungersGN�615 Spring plungersGN�615.1 St. Steel-Spring plungersGN�615.1 Spring plungersGN�616 St. Steel-Spring plungersGN�616 |
Ball button GN 249-8 Code No. 249 |
|
|
