St. Steel - Wing screws |
GN 431 |

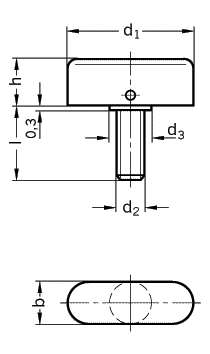

| d1 | d2 | Length l +0,5 / -1 | b | h | |||
| 25 | M 6 | 16 | 20 | 25 | 8 | 10 | |
| 30 | M 8 | 16 | 20 | 25 | 32 | 10 | 12 |
| Specification | Information | How to order |
| Stainless Steel Body sintered German Standard No. 1.4404 Screw German Standard No. 1.4301 matt shot-blasted Grub screw screwed in |
St.
Steel-Wing-screw GN 431-36-M10-40 Code
No. 431 |
|
|
