St. Steel - Wing nuts |
GN 432 |

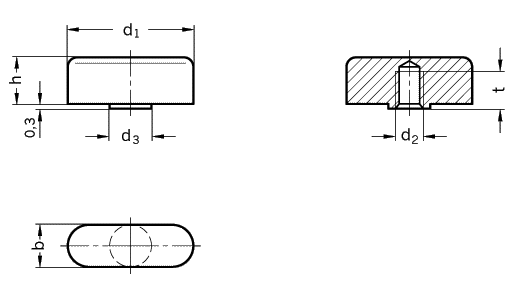

| d1 | d2 | d3 | b | h | t | |
| min. | ||||||
| 25 | M 6 | � | 8 | 8 | 10 | 7 |
| 30 | M 6 | M 8 | 10 | 10 | 12 | 9 |
| 36 | M 8 | M 10 | 12 | 12 | 14,5 | 10 |
| Specification | Information | How to order |
| Stainless Steel Sintered German Standard No. 1.4404 matt shot-blasted |
St. Steel-Hand knobsGN 5334
St. Steel-Hand knobsGN 5335 |
St. Steel-Wing nut GN 432-25-M6 Code
No. 432 |
|
|
