Handwheels

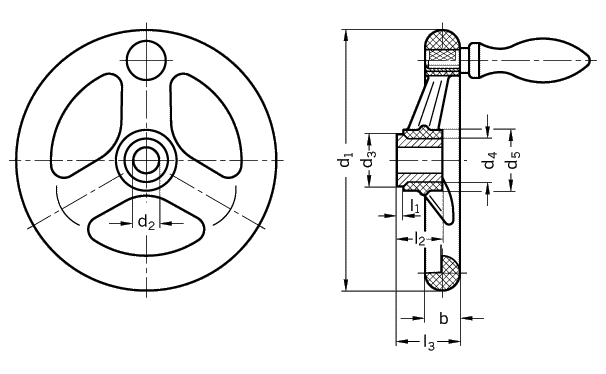

GN 555


Bore Code:
without keyway = B + Bore dia. Type A without handpiece
with keyway = K + Bore dia. Type D with revolving handpiece
d1 d2 H7 d3 d4 d5 b l1-0,5 l2-0,5 l3 ~ � No. of
  Bore               Hand- spokes
                piece

100 10 12 24 18 28 15 - 22 26 16 3
125 12 14 24 18 30 18 1 25 34 20 3
140 14 16 32 24 38 20 3 26 35 20 3

160 14 16 32 24 37 22 5 28 40 25 3
200 18 20 40 31 45 24 4 32 45 25 3
250 22 24 49 38 56 29 7 36 58 32 3

300 26 30 58 47 70 32 2 40 62 32 3
Specification Information How to order
Plastic
Duroplast (Phenolic)
reinforced

black, shiny

Moulding flash
removed and polished

Insert steel
blackened

Tapped brass insert
for revolving handpiece

Revolving handles DIN 98
Plastic (Technopolymer)
black

KeywayDIN 6885/1

 Face and bore are machined after the steel insert is pressed in, resulting in concentricity and squareness of rim.

Countersunk washers GN 184
(for handwheel retention)

 Handwheel
GN 555-160-K16-D

Code No. 555
d1 160
Bore Code K
d2 16
Type D
