  		 matt black plastic coated
Handwheels
GN 324


Bore Code:
without keyway = B + Bore dia. Type A without handpiece
with keyway = K + Bore dia. Type D with revolving handpiece

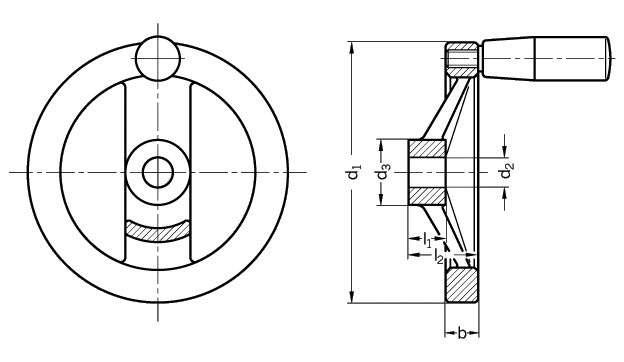

d1 d2 H7 d3 b l1 l2 �
  Bore         Handpiece

125 12 31 15 18 33 23
140 14 36 16,5 19 36 23
160 14 36 18 20 39 26

200 18 42 20,5 24 45 26
250 22 48 23 28 51 28
Specification Information How to order
Aluminum
Gravity die casting

Hub machined
Rim turned on all sides

Plastic coated
matt black, textured finish

Rim concentric and
square to bore

Revolving handles
Plastic (Technopolymer)
blackGN 598

KeywayDIN 6885/1

Cross holesGN 110

 Handwheels GN 324 have the same dimensions as GN 322.

Handwheels GN 322
(Rim highly polished)

Countersunk washers
(for handwheel retention)GN 184

 Handwheel
GN 324-125-B12-A

Code No. 324
d1 125
Bore Code B
d2 12
Type A
