  		 Plastic with St. Steel boss
Hand knobs		 GN 6336.1
GN 6336.2


Type E with threaded blind bore

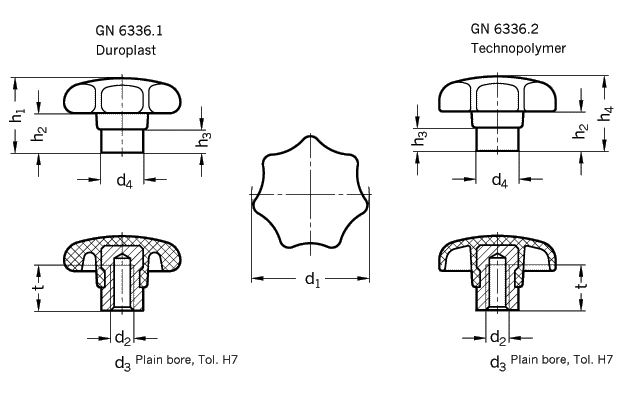

d1 d2   d4 h1 h2 h3 h4 t
  GN 6336.1 GN 6336.2           min.
  Type E Type E

32 M 6 M 6 12 21 10 8,5 20 12
40 M 8 M 8 14 26 13 10 25 14
50 M 10 M 10 18 34 17 10 32 18

63 M 12 M 12 20 42 21 14 40 22
80 M 16 ( 25 52 27 15 52 30
Specification Information How to order
GN 6336.1...NI
Plastic
Duroplast (Phenolic)

black, shiny

Boss
Stainless Steel (NI)
German Standard No. 1.4305

GN 6336.2...NI
Plastic
Technopolymer (Polyamide)
reinforced

black matt finish

Boss
Stainless Steel (NI)
German Standard No. 1.4305

St. Steel - properties

 Hand knobs GN 6336.1 / GN 6336.2 with St. Steel boss have important advantages:

The face of the boss is exactly square to the bore and is in St. Steel to prevent edge breakages. Cross dowels can be used successfully.

Hand knobs GN 6336.5
(St. Steel male thread)

St. Steel - Hand knobsGN 5334

St. Steel - Hand knobsGN 5335

 Hand knob with
St. Steel boss
GN 6336.1-50-M10-E-NI

Code No. 6336.1
d1 50
d2 M10
Type E
St. Steel NI

Hand knob with
St. Steel boss
GN 6336.2-63-M12-E-NI

Code No. 6336.2
d1 63
d2 M12
Type E
St. Steel NI
