Control levers |
GN 750 |

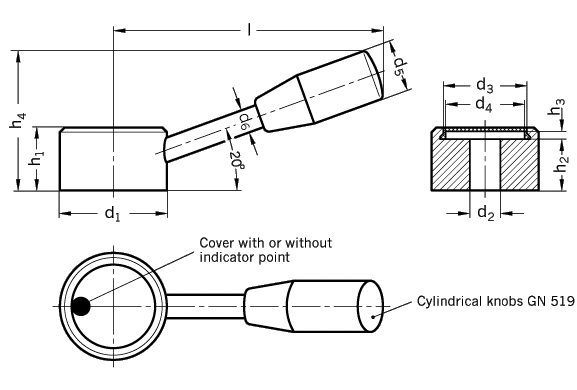

| Type M Cover with indicator point | Type N Cover plain |
| d1 | d2 H7 | d3 | d4 | d5 | d6 | h1 | h2 | h3 | h4 | l | |
| Bore (B) | |||||||||||
| 32 | B 10 | - | 25 | 23 | 18 | 8 | 21 | 15 | 4,2 | 43 | 84 |
| 40 | B 10 | B 12 | 32 | 30 | 21 | 9 | 25 | 19 | 4,0 | 54 | 106 |
| 50 | B 14 | B 16 | 40 | 37,5 | 23 | 11 | 28 | 22 | 3,8 | 63 | 130 |
| Specification | Information | How to order |
| Steel
fine turned resp. ground
Cover Cylindrical knob GN 519 |
The cylindrical shape of the hub together with the light grey cover give these control levers GN 750 a pleasing appearance. The cover hides fasteners (seeassembly instructions) and provides a printing facility for any symbol or logo. On assembly, the cover is pushed in by hand and can be removed with a screw driver via a suitable slot. Control levers can also be supplied as standard with: SquareDIN 79 KeywayDIN 6885 |
Control lever GN 750-32-B10-N
Code No. 750 |
|
|
|
