with brass / plastic pad St. Steel - Grub screws |
GN 913.5 |

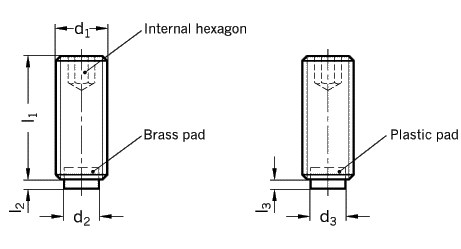

| d1 | l1 | d2 | d3 | l2 | l3 | Internal | |||||||
| Nominal size | Brass | Plastic | Brass | Plastic | Hexagon | ||||||||
| pad | pad | pad | pad | ||||||||||
| M 4 | 6 | 8 | 10 | 12 | 16 | 20 | 2,5 | 2 | 0,5 | 1 | 2 | ||
| M 5 | 8 | 10 | 12 | 16 | 20 | 25 | 3 | 3 | 0,5 | 1 | 2,5 | ||
| M 6 | 10 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 4 | 3,5 | 1 | 1,3 | 3 |
| M 8 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 6 | 5 | 1,5 | 1,6 | 4 |
| M 10 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 8 | 6,5 | 2 | 1,9 | 5 |
| M 12 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 10 | 8 | 2 | 2,1 | 6 |
| Specification | Information | How to order |
| St. Steel German Standard 1.4305 Pads |
St. Steel-Grub screws GN 913.5 with pad in brass or
plastic are used in applications, where marks and damage on the workpiece
have to be avoided.
St. Steel - Ball point screws GN 605 / GN 606 |
St. Steel - Grub
screw GN 913.5-M6-20-MS Code
No. 913.5 |
|
