Hinges |
GN 237 |

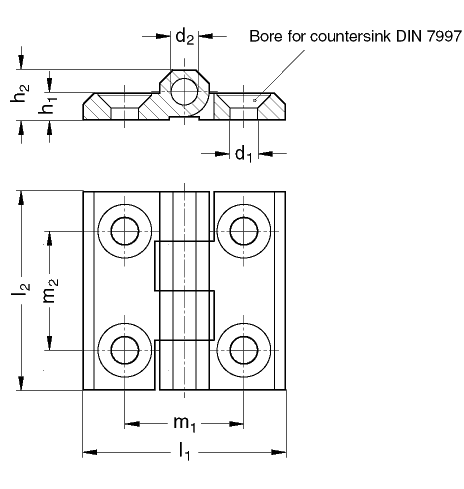

| l1 | l2 | d1 | d2 | h1 | h2 | m1 | m2 |
| 40 | 40 | 5,3 | 4 | 5 | �9 | 25 | 25 |
| 50 | 50 | 6,4 | 6 | 6 | 11,5 | 30 | 30 |
| 60 | 60 | 8,3 | 8 | 8 | 15 | 36 | 36 |
| Specification | Information | How to order |
| Zinc die casting
plastic coated Pin St. Steel |
Hinges GN 237 offer an angular movement of max. 270 �C | Hinge GN 237-60-60 Code
No. 237 |
|
