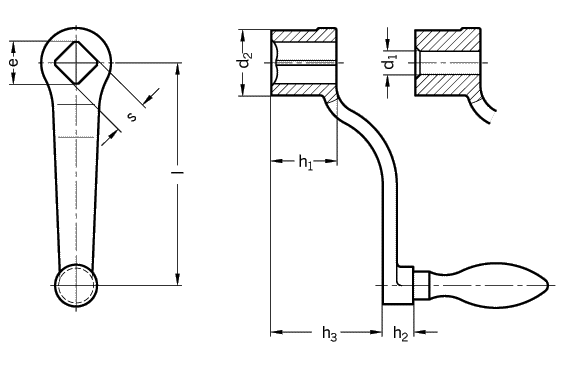

Cranked handles		 Extract from
DIN 468


Type F with fixed handpiece Type D with revolving handpiece
Length l s H11 e min. d1 H7  d2 h1 h2 h3 ~ �
  Square (V) (Column 1) Bore (B)         Hand-
              piece

63 V 10 - 13,1 B 6 20 20 11 32 16
80 V 10 V 12 13,1 B 8 24 24 13 38 18
100 V 12 V 14 16,1 B 10 28 28 13 48 20

125 V 14 V 17 18,1 B 10 34 34 14 55 22
160 V 17 V 19 22,2 B 14 38 38 14 65 25
200 V 19 V 22 25,2 B 17 44 44 21 78 28

250 V 22 V 24 28,2 B 17 48 48 21 90 32
315 V 24 V 27 32,2 B 20 54 54 26 105 36
Specification Information How to order
Cranked handle
Malleable cast iron (GTW)
size 63
Cast iron (GGG)
size 80 ÷ 315

deburred and shot-blasted
Hub machined

Fixed handles DIN 39
Steel

Revolving handles DIN 98
Steel

Square boreDIN 79

 Cranked handles DIN 468 are available with steel handpieces as standard. If plastic handpieces are required, please specify on order. Cranked handle
DIN 468-100-V14-F

Code No. 468
Length l 100
s (d1) V14
Type F
