Disc handwheels
GN 323


Bore Code:
without keyway = B + Bore dia. Type A without handpiece
with keyway = K + Bore dia. Type D with revolving handpiece

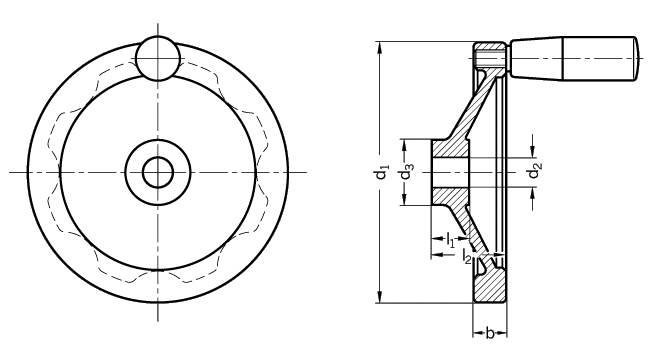

d1 d2 H7 d3 b l1 l2 �
  Bore         Handpiece

80 10 26 13 16 26 18
100 10 28 14 17 30 21
125 12 31 15 18 33 23

140 14 36 16,5 19 36 23
160 14 36 18 20 39 26
200 18 42 20,5 24 45 26

250 22 48 23 28 51 28
Specification Information How to order
Aluminum
Gravity die casting

Hub machined
Rim turned on all sides

Plastic coated
matt black, textured finish

Rim concentric and
square to bore

Revolving handles GN 598
Plastic (Technopolymer)
black

KeywayDIN 6885/1

Cross holesGN 110

 Disc handwheels GN 323 have the same dimensions as GN 321.

Handwheels
(Rim highly polished)GN 321

Countersunk washers
(for handwheel retention)GN 184

 Disc handwheel
GN 323-160-B14-D

Code No. 323
