Handwheels

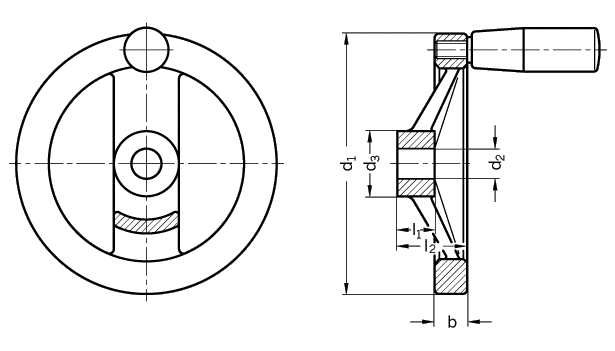

GN 322


Bore Code:
without keyway = B + Bore dia. Type A without handpiece
with keyway = K + Bore dia. Type D with revolving handpiece
d1 d2 H7 d3 b l1 l2 �
  Bore         Handpiece

125 12 14 31 15 18 33 23
140 14 16 36 16,5 19 36 23
160 14 16 36 18 20 39 26

200 18 20 42 20,5 24 45 26
250 22 26 48 23 28 51 28
Specification Information How to order
Aluminum
Gravity die casting

Hub machined
Rim turned and polished

unmachined body
matt shot-blasted

Rim concentric and
square to bore

Revolving handles GN 598
Plastic (Duroplast)
black

KeywayDIN 6885/1

Cross holesGN 110

 Handwheels GN 322 are distinguished by modern design.

The highly polished rim and the shot blast finish, do for most applications not require painting or other surface treatments.

Handwheels GN 324
(matt black plastic coated)

Handwheels GN 322.3
(with retractable handle)

Countersunk washers GN 184
(for handwheel retention)

 Handwheel
GN 322-140-K14-D

Code No. 322
d1 140
Bore Code K
d2 14
Type D
